LXD Containers: Installing Pi-Hole

Pi-Hole in LXD

Linux Containers: Installing Pi Hole

by Craig Miller

Linux Containers (LXD) are fun to use, typing lxc ls and all, but what about doing something useful? One of the things I really like about LXD is that rather than dedicate your Raspberry Pi to one thing, you can do multiple things, each running in their own container.

Some of the useful things I have running in containers at my house are:

The nice thing about all the above, is that it was easy to spin-up a new Linux Container, and start playing in the sandbox.

Doing something useful with LXD

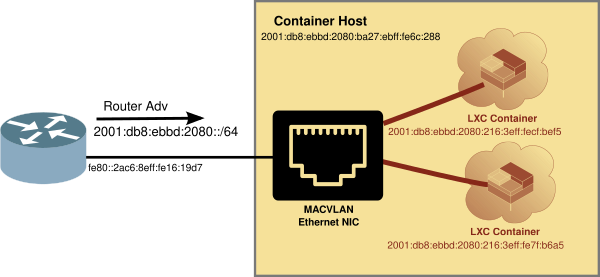

We'll use the MACVLAN interface to connect our new Linux container to the network. As a refresher, the diagram looks like:

Using a Linux MACVLAN

If you are using the LXD Starer SD Card, then the default profile will already be configured to use MACVLAN interfaces. If not see LXD Essentials on how to create a profile for MACVLAN

Picking a distro for your LXD container

I am a big fan of Alpine Linux for containers, however because Alpine starts out bare bones, it is sometimes easier to start out with a distro which has more included in the base OS.

It is easy to start with a Debian or Ubuntu distro as the base OS of your container.

lxc launch images:ubuntu/jammy my-container

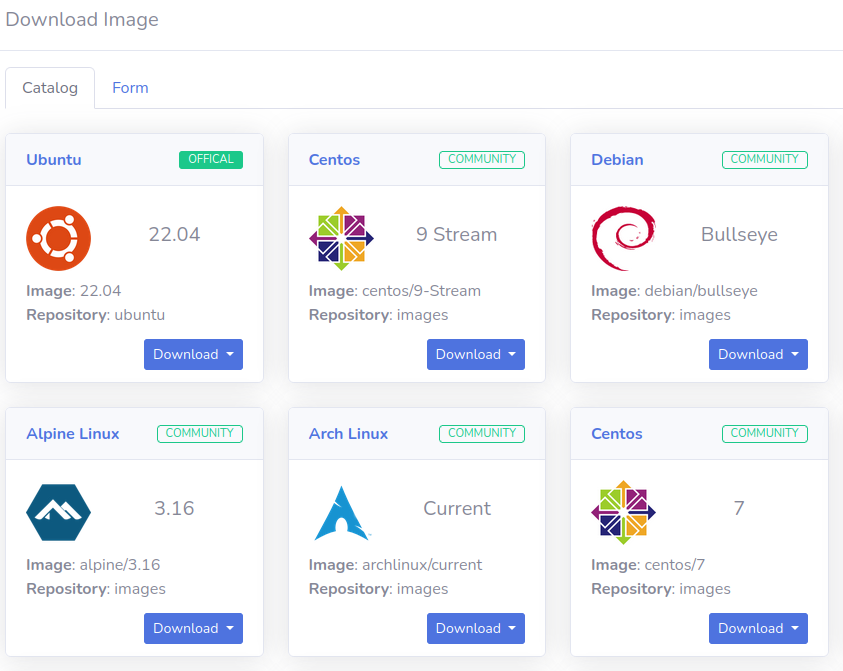

Or if you are using LXDware, first, download an image under Images->+Image

LXDware download image

Then under Containers->+Container select your downloaded image

LXDware download image

I tend to select Debian rather than Ubuntu, since I usually don't need the extra stuff Ubuntu includes.

lxc launch images:debian/bullseye my-container

Creating a Pi-Hole container

Now that you have created a container, I called mine pi-hole

You can rename your container by using the following:

lxc stop my-container
lxc rename my-container pi-hole
lxc start pi-hole

Once your pi-hole container is running, step into the container with the following command:

lxc exec pi-hole bash

Start the Pi-Hole installation

Now that you have stepped into your container (above), run the following command (as root). Running install scripts as root is never a good idea on your host machine, since the install script could do malicious actions, from which you won't be able to recover. But since we are inside a container, if it goes bad, we'll just delete the container.

apt-get update
apt-get install curl

curl -sSL https://install.pi-hole.net | bash

Curl will pull down the installation script and feed it to bash. Normally, I would say this is a terrible thing to do, since you are running a random script as root. But since we are in a container, the worst that can happen is that the container is been infected, or turned into a malicious bot. But since it is a container, you can just stop the container and delete it, should this happen. The host OS (Pi OS) is not affected by the container.

The install script will pull down lots of packages, and do some configuring and eventually will give an output that looks like:

[v] Pi-hole Enabled
[i] Web Interface password: R3-JswmZ
[i] This can be changed using 'pihole -a -p'

[i] View the web interface at http://pi.hole/admin or

[i] You may now configure your devices to use the Pi-hole as their DNS server
[i] Pi-hole DNS (IPv4):
[i] Pi-hole DNS (IPv6): fd2a:f90c:fd47:0:216:3eff:fe0b:6cc9
[i] If you have not done so already, the above IP should be set to static.

[i] The install log is located at: /etc/pihole/install.log
[v] Installation complete!

You IPv6 and IPv4 addresses will be different (since they will be the IP addresses of your container).

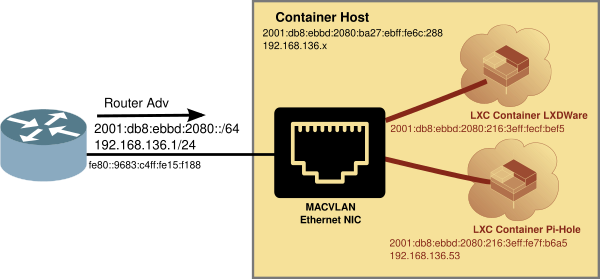

Now your Linux Containers should (logically) look like:

LXD logical diagram

Setting up the Pi-Hole in your Network

Configuring the Pi-Hole depends on how you want to configure your network. There are two options:

  1. DNS-only
  2. DNS + DHCP

We'll be using case 1 (DNS-only) for the lab. Both cases require configuring your router to: Send out the DHCPv4 option (6) of your Pi-Hole as the network DNS server

And for case 2: DNS + DHCP, you will also have to disable DHCP on your router, and enable the DHCP server on the Pi-Hole

How does Pi-Hole work

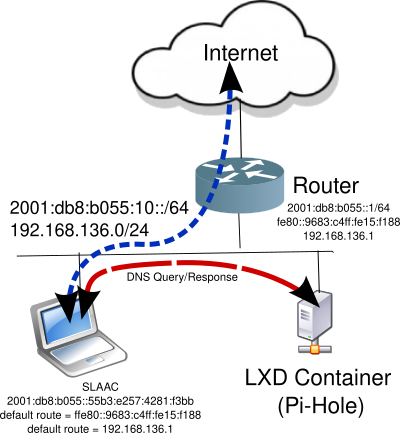

When configured as your network DNS server (case 1), the Pi-Hole will receive DNS requests from the devices on your network, look up if the request is an Ad URL, or other black-list domain, and return a valid IP address, if the request is valid, otherwise, it will return an unusable address (:: or which prevents the Ad from loading, since this address can not be used as a destination address (see RFC 1122 or RFC 4291), the unspecified address in IPv6)

LXD logical diagram

Configuring Pi-Hole for DNS-Only operation

Using the DNS-Only use-case is the easiest way to use the Pi-Hole, because it defaults to this method.

  1. Install Pi-Hole (in our case, inside a Linux Container)
  2. Reconfigure your router to hand out the Pi-Hole as a DNS server (as part of the DHCP transaction)
  3. Reboot or reconnect your device (such as a laptop) to the network to get the new DNS configuration
  4. Use the internet without Ads!

Advantages of running Pi-Hole

Something I have been suggesting for some time, is that everyone should run their own DNS server in their house. Remembering IP addresses of your devices does not scale, and certainly doesn't work for IPv6!

A note about FQDNs

Fully Qualified Domain Names (FQDNs) are internet names such as www.google.com or www.makiki.ca. Inside your house, you may want to use a shorter FQDN for your hosts to save typing.

There are two common and one reserved FQDN that can be used in your house:

If your router supports DNS Search List configuration, you can add .home.arpa to the DHCP option (119), and then you won't have to type the FQDN suffix (such as .home.arpa) every time you want to resolve a device on your network. Many routers (not running OpenWrt) won't support this DHCP option.

Adding DNS records in Pi-Hole

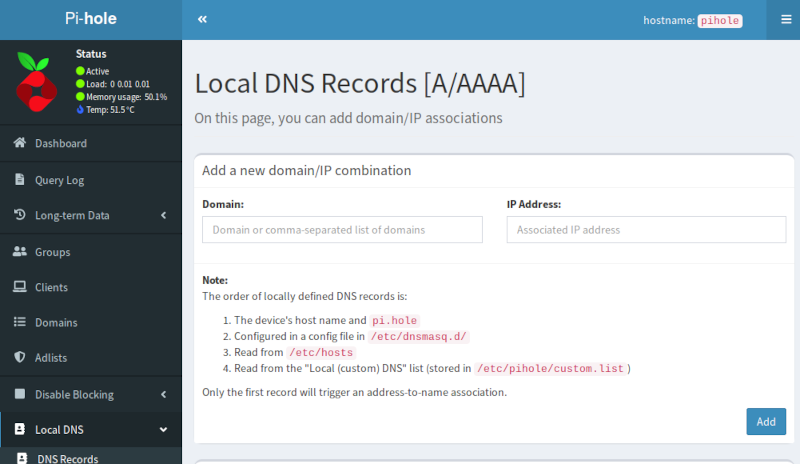

After logging into the Pi-Hole, note the menus along the left side of the browser window. Select Local DNS, and two additional menu items will appear, select DNS Records

LXD logical diagram

The Pi-Hole terminology is a little misleading here. What they call Domain is really a hostname which can or cannot be a FQDN. You can just put in the hostname without the FQDN suffix, and it will work.

Once you get more than a handful of hosts on your network (easily done with LXD Containers), DNS is your friend. You can see the hosts that you have entered in the lower part of the Pi-Hole window.

LXD logical diagram

In the example above, you can see the host test has both an IPv4 and a IPv6 (ULA) address.

HANDS ON: Add the IP addresses of your containers into the Pi-Hole Local DNS web page.

Testing DNS records with the host command

In the lab, the router has not been configured to hand out your Pi-Hole server as DHCP option 6 (DNS server), since there are many Pi-Holes running on the network. But that doesn't mean we can't test the Pi-Hole DNS server.

Using a terminal and the host command, we will make a DNS request. You can use the dig if you are familiar with it, but I find host simpler to use.

$ host test 2001:db8:8011:fd44::334
Using domain server:
Name: 2001:db8:8011:fd44::334
Address: 2001:db8:8011:fd44::334#53

test has address
test has IPv6 address fd2a:f90c:fd47:0:216:3eff:fe35:9c64

The host command takes 2 arguments, the second being optional. The first argument is the host you want to lookup. The second, optional, argument is the DNS server IP address you wish to direct the DNS request to. You can supply a IPv4 or IPv6 address of the DNS server.

In the above example, I am making a DNS query about the host test and I used the IPv6 address of the DNS server (the Pi-Hole running in a LXD container)

Testing that Pi-Hole is blocking Ads

We'll use the host command again, but make a query on a popular Ad server

$ host k3vzn.flx10.com 2001:db8:8011:fd44::334
Using domain server:
Name: 2001:db8:8011:fd44::334
Address: 2001:db8:8011:fd44::334#53

k3vzn.flx10.com has address
k3vzn.flx10.com has IPv6 address ::

Since the Pi-Hole returned an unusable address, the Ad will not be loaded.

Caveats of DNS-only operation

As you have seen DNS-only operation with the Pi-Hole is easy to setup and use. However there are a few caveats:

  1. When using DNS + DHCP use case, hosts which make DHCPv4 requests will auto populate in the DNS. For example, if your host is named lxdhost10 it will automatically be learned by the Pi-Hole, and you will not need to enter it in the Local DNS section of the Pi-Hole.
  2. If you have IPv6 on your network, the router will still be handing out its own DNS server via the Router Advertisement (RA), which DHCPv4 will be handing out the Pi-Hole as the DNS server.
    1. This will result in confusion on your screen, as the IPv4 Ads will be blocked, but the IPv6 Ads will not be.
    2. If you are running OpenWrt on your router, you can configure it to Advertise the Pi-Hole's IPv6 address as the DNS server in the RA
  3. The Pi-Hole does not handle IPv6 SLAAC addressing. Unfortunately, the Pi-Hole developers have decided to only support DHCPv6. This means that the Android devices will not make DNS queries to the Pi-Hole in an IPv6-only network. See the Adblock on OpenWrt and IPv6. BTW, many IoT devices are based on Android.

Using LXD on a Pi

Of course, LXD runs on more powerful machines than just Raspberry Pi's. But you can enjoy the advantages of Linux Containers in your own home by installing it on a Pi. While it is cool to just run containers, they can also do useful things, such as development sandboxes, a video conferencing app or even run a Pi-Hole.


13 April 2023
updated 1 May 2023
