PPPoX -A Technology Primer
- PPP is more than just a dial up access technology
- PPP has been recognized as a thin transport technology (adding
only 2 bytes)
- PPP is utilized for Packet over SONet (PoS)
- PPPoX is being deployed as a Broadband Access Technology
- Sucessor to SLIP (Serial Line Internet Protocol) - RFC 1055
- Written by Rick Adams of UUNET on BSD in1984
- Internet Standard in 1994 - RFC 1661
- Initially written in Dec 1993 - RFC 1548
Point to Point Protocol
The Point-to-Point Protocol (PPP) provides a standard method for
transporting multi-protocol datagrams over point-to-point links. PPP is
comprised of three main components:
- A method for encapsulating multi-protocol datagrams.
- A Link Control Protocol (LCP) for establishing, configuring, and
testing the data-link connection.
- A family of Network Control Protocols (NCPs) for establishing and
configuring different network-layer protocols.
PPP has support for:
- Low Speed environments where encapsulation can be shortened to
only 2 or 4 bytes
- High Speed environments -- the default encapsulation uses only
simple fields, only one of which needs to be examined for demultiplexing
Phases of PPP

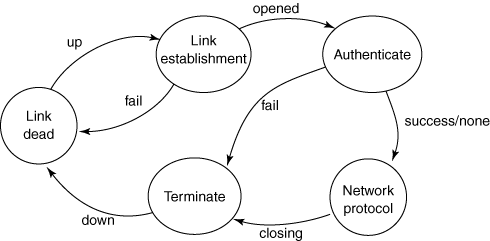

Fig1. PPP Phases
Types of Authentication
Authentication Protocol (PAP )
PAP works basically the same way as the normal login procedure. The
client authenticates itself by sending a user name and an (optionally
encrypted) password to the server, which the server compares to its
secrets database. This technique is vulnerable to eavesdroppers who may
try to obtain the password by listening in on the serial line, and to
repeated trial and error attacks.
- Two Way Handshake
- Boston sends Password in the clear
- Atlanta Accepts or Rejects the password

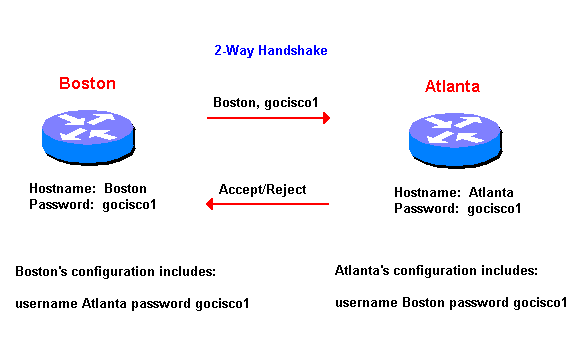

Fig. 2 PAP

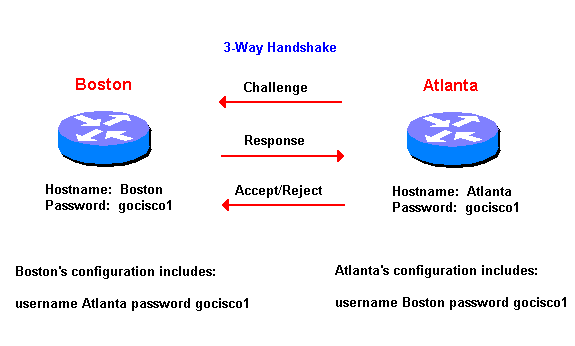

Authentication Protocol (CHAP)
The authenticator (i.e. the server) sends a randomly generated
``challenge'' string to the client, along with its hostname. The client
uses the hostname to look up the appropriate secret, combines it with
the challenge, and encrypts the string using a one-way hashing function.
The result is returned to the server along with the client's hostname.
The server now performs the same computation, and acknowledges the
client if it arrives at the same result.
- 3 Way Handshake
- Atlanta sends Challenge
- Boston sends response
- Atlanta Accepts or Rejects encrypted response
New Use of PPP
- Broadband Access
- Re-use of an old use - Only accept authenticated users
- Permits Service to be metered
Types of PPP in Broadband
- Defined by RFC
- Encapsuation of a single PPP session per VC (VPI/VCI)
- Not defined currently by a RFC
- Encapsulation of multiple PPP sessions per VC (VPI/VCI)
- Defined by RFC
- Encapsulation of PPP over Ethernet

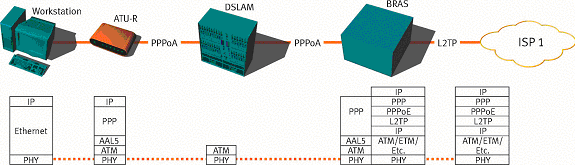

Fig. 4 PPPoA

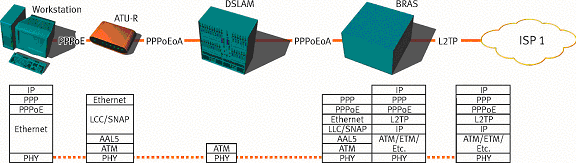

Fig. 5 PPPoEoA
Service providers are all anxious to sell broadband Internet services.
However, like all service provider business models, broadband services
will only be financially successful if they can be deployed and accepted
on a very large scale. Thousands of customers must be serviced at a
single POP and expensive networking equipment must be amortized over
tens of thousands (maybe even millions) of subscribers.
Network equipment manufacturers are consistently developing larger and
more scalable equipment. Manufacturers are “leapfrogging” each other in
a game of numbers – each claiming to support more subscribers on a
single port or greater density within a single chassis. In fact, some
vendors are now claiming to support more than 100,000 simultaneous PPPoE
sessions or Subscribers on a single aggregation device.

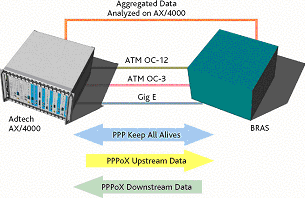

The diagram shows test for a typical network equipment manufacturer. In
this example, the manufacturer wants to test approximately 100,000
concurrent PPPoA sessions on a single device, and run data and LCP
Hellos (a.k.a. keep-alives) simultaneously on all of the sessions.
Spirent’s AX/4000 PPPoX Emulation Suite allows the user to create 32000
sessions per port supporting ATM OC-3c, ATM OC-12c, Gigabit, and 10/100
Ethernet. This solution supports line rate data on each session with
keep-alives and many other extensive features.
how the Cisco Terminates PPPoE
- The Cisco initiates a Virtual Access interface (based on the
Virtutal-Template configured) upon receipt of a PPPoE Discovery
Initiaition (PADI). The Cisco will report (on the console) Interface Virtual-Access3, changed
state to up
- Upon sucessful
authentications, the Cisco will report (again on the console): Line protocol on Interface
Virtual-Access3, changed state to up

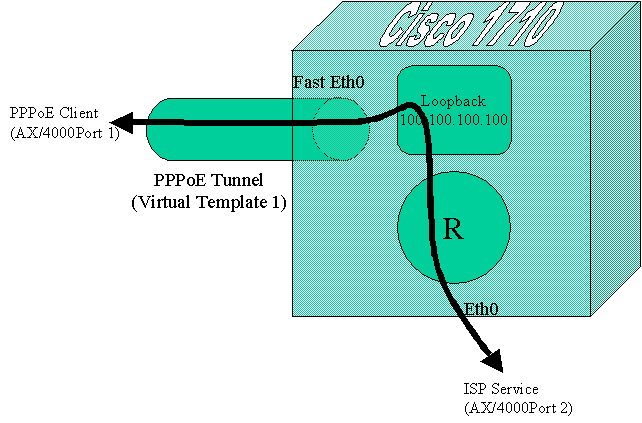

- The Data Path
follows as shown in figure 7.
Capture of PPPoE Session
1055 A Nonstandard for Transmission of IP Datagrams over
Serial Lines: SLIP
1548 The Point to Point Protocol
- RFC 1661 The
Point to Poin Protocol (superceds RFC 1548)
- RFC 2364
PPP Over AAL5, July 1998
- RFC 2516
A Method for Transmitting PPP Over Ethernet (PPPoE),
- February 1999
Miller January 2003
